150CC GY6 150 ATV GO-KART ENGINE MOTOR BUILT-IN REVERSE

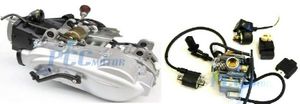

BRAND NEW 150CC GY6 AUTO CVT 4 Stroke ENGINE with BUILT-IN REVERSE GEAR

INCLUDING: CARBURETOR, CDI, STARTER SOLENOID, COIL, REGULATOR RECTIFIER

Brand new GY6 High Performance ATV QUAD GO-KART Engine, 4 stroke, AUTO (CVT) clutch. Engine comes complete, ready to bolt on. Kick start lever and REVERSE HANDLE are included. The reverse gear is built-in, NOT outer reverse box.

 SPECS:

 Type: 1-cylinder, horizontal, 4-stroke, air-cooled by forced
Bore x Stroke: 57.4mm x 57.8mm
Displacement: 149.6ml
Max. Power & Corresponding Speed: 7.5KW/7500rpm
Max. Torque & Corresponding Speed: 10.3N.m/6500rpm
Min. Fuel Consumption: =389g/KW.h
Pollutant Index: =4.0% (CO), =1000ppm (HC)
Clutch Type: automatic centrifugal
Start Mode: electric/kick
Gearshift Mode: step less

• 150cc Short Case GY6 Engine, use 743 Belt
• Mounting Hole Spacing A: 11.5"
• Mounting Hole Spacing B: 2.4" X 3.8"
• Mounting Hole Spacing C: 4.9" X 6.5"

This engine is used under many names including, Kazuma, Redcat, Roketa, Terminator, Lynx, Tank and many others. The main engine used on these are the GY6 4-stroke engines.
